Positioning System

JsonCut provides a flexible positioning system that supports both pixel-perfect placement and relative positioning. Whether you need precise control or responsive layouts, our positioning system has you covered.

Basic Positioning

The simplest way to position elements is using pixel coordinates from the top-left corner:

Basic Positioning Example

{
  "type": "image",
  "config": {
    "width": 600,
    "height": 400,
    "backgroundColor": "#f0f0f0",
    "layers": [
      {
        "type": "rectangle",
        "x": 50, "y": 50, "width": 80, "height": 60,
        "fill": "#ff6b6b"
      },
      {
        "type": "rectangle",
        "x": 200, "y": 150, "width": 80, "height": 60,
        "fill": "#4ecdc4"
      },
      {
        "type": "rectangle",
        "x": 400, "y": 250, "width": 80, "height": 60,
        "fill": "#45b7d1"
      },
      {
        "type": "text",
        "text": "(50, 50)", "x": 90, "y": 85,
        "fontSize": 14, "color": "#333333", "align": "center"
      },
      {
        "type": "text",
        "text": "(200, 150)", "x": 240, "y": 185,
        "fontSize": 14, "color": "#333333", "align": "center"
      },
      {
        "type": "text",
        "text": "(400, 250)", "x": 440, "y": 285,
        "fontSize": 14, "color": "#333333", "align": "center"
      }
    ]
  }
}

Coordinate System

Origin: Top-left corner (0, 0)
X-axis: Increases from left to right
Y-axis: Increases from top to bottom
Units: Pixels

Position Strings

For common alignments, you can use position strings instead of exact coordinates:

Position Strings Example

{
  "type": "image",
  "config": {
    "width": 600,
    "height": 400,
    "backgroundColor": "#ffffff",
    "layers": [
      {
        "type": "circle",
        "position": "center",
        "width": 120, "height": 120,
        "fill": "#DB1212"
      },
      {
        "type": "rectangle",
        "position": "top-left",
        "width": 80, "height": 50,
        "fill": "#ff6b6b"
      },
      {
        "type": "rectangle",
        "position": "top-right",
        "width": 80, "height": 50,
        "fill": "#A216C9"
      },
      {
        "type": "rectangle",
        "position": "bottom-left",
        "width": 80, "height": 50,
        "fill": "#A8C41A"
      },
      {
        "type": "rectangle",
        "position": "bottom-right",
        "width": 80, "height": 50,
        "fill": "#1AB6C4"
      }
    ]
  }
}

Available Position Strings

Position	Description	Visual Alignment
`center`	Center of canvas	Middle center
`top`	Top center	Top middle
`bottom`	Bottom center	Bottom middle
`top-left`	Top left corner	Upper left
`top-right`	Top right corner	Upper right
`center-left`	Left middle	Middle left
`center-right`	Right middle	Middle right
`bottom-left`	Bottom left corner	Lower left
`bottom-right`	Bottom right corner	Lower right

Position String Examples

Position String Grid

{
  "type": "image",
  "config": {
    "width": 600,
    "height": 500,
    "backgroundColor": "#2B2B2B",
    "layers": [
      { "type": "rectangle", "position": "top-left", "width": 60, "height": 60, "fill": "#ff0000" },
      { "type": "rectangle", "position": "top", "width": 60, "height": 60, "fill": "#00e676" },
      { "type": "rectangle", "position": "top-right", "width": 60, "height": 60, "fill": "#2979ff" },
      { "type": "rectangle", "position": "center-left", "width": 60, "height": 60, "fill": "#ff9100" },
      { "type": "circle", "position": "center", "width": 80, "height": 80, "fill": "#651fff" },
      { "type": "rectangle", "position": "center-right", "width": 60, "height": 60, "fill": "#ffea00" },
      { "type": "rectangle", "position": "bottom-left", "width": 60, "height": 60, "fill": "#00bfa5" },
      { "type": "rectangle", "position": "bottom", "width": 60, "height": 60, "fill": "#d500f9" },
      { "type": "rectangle", "position": "bottom-right", "width": 60, "height": 60, "fill": "#ff4081" },

      { "type": "text", "text": "TL", "position": "top-left", "fontSize": 16, "color": "#000000", "align": "left" },
      { "type": "text", "text": "T", "position": "top", "fontSize": 16, "color": "#000000", "align": "center" },
      { "type": "text", "text": "TR", "position": "top-right", "fontSize": 16, "color": "#000000", "align": "right" },
      { "type": "text", "text": "CL", "position": "center-left", "fontSize": 16, "color": "#000000", "align": "left" },
      { "type": "text", "text": "CENTER", "position": "center", "fontSize": 18, "color": "#000000", "align": "center" },
      { "type": "text", "text": "CR", "position": "center-right", "fontSize": 16, "color": "#000000", "align": "right" },
      { "type": "text", "text": "BL", "position": "bottom-left", "fontSize": 16, "color": "#000000", "align": "left" },
      { "type": "text", "text": "B", "position": "bottom", "fontSize": 16, "color": "#000000", "align": "center" },
      { "type": "text", "text": "BR", "position": "bottom-right", "fontSize": 16, "color": "#000000", "align": "right" }
    ]
  }
}

Advanced Position Objects

For fine-grained control, use position objects with relative coordinates and origin points:

Advanced Positioning Example

{
  "type": "image",
  "config": {
    "width": 600,
    "height": 400,
    "backgroundColor": "#ffffff",
    "layers": [
      {
        "type": "rectangle",
        "width": 120, "height": 80,
        "fill": "#ff6b6b",
        "position": { "x": 0.2, "y": 0.3, "originX": "left", "originY": "top" }
      },
      {
        "type": "rectangle",
        "width": 120, "height": 80,
        "fill": "#4ecdc4",
        "position": { "x": 0.5, "y": 0.3, "originX": "center", "originY": "center" }
      },
      {
        "type": "rectangle",
        "width": 120, "height": 80,
        "fill": "#45b7d1",
        "position": { "x": 0.8, "y": 0.3, "originX": "right", "originY": "bottom" }
      },
      {
        "type": "text",
        "text": "LEFT", "position": { "x": 0.2, "y": 0.6, "originX": "center", "originY": "center" },
        "fontSize": 16, "color": "#ff6b6b"
      },
      {
        "type": "text",
        "text": "CENTER", "position": { "x": 0.5, "y": 0.6, "originX": "center", "originY": "center" },
        "fontSize": 16, "color": "#4ecdc4"
      },
      {
        "type": "text",
        "text": "RIGHT", "position": { "x": 0.8, "y": 0.6, "originX": "center", "originY": "center" },
        "fontSize": 16, "color": "#45b7d1"
      }
    ]
  }
}

Position Object Properties

Property	Type	Range	Description
`x`	number	0-1	Relative Horizontal position (0 = left, 1 = right)
`y`	number	0-1	Relative Vertical position (0 = top, 1 = bottom)
`originX`	string	-	Horizontal anchor: `left`, `center`, `right`
`originY`	string	-	Vertical anchor: `top`, `center`, `bottom`

Origin Points Explained

The origin determines which part of your element aligns to the position coordinates:

Origin Points Example

{
  "type": "image",
  "config": {
    "width": 600,
    "height": 300,
    "backgroundColor": "#f0f0f0",
    "layers": [
      {
        "type": "circle",
        "width": 50,
        "height": 50,
        "fill": "#2B2B2B",
        "position": { "x": 0.5, "y": 0.5, "originX": "center", "originY": "center" }
      },
      {
        "type": "rectangle",
        "width": 140,
        "height": 70,
        "fill": "#ff6b6b",
        "opacity": 0.85,
        "position": { "x": 0.5, "y": 0.5, "originX": "left", "originY": "top" }
      },
      {
        "type": "rectangle",
        "width": 140,
        "height": 70,
        "fill": "#4ecdc4",
        "opacity": 0.85,
        "position": { "x": 0.5, "y": 0.5, "originX": "center", "originY": "center" }
      },
      {
        "type": "rectangle",
        "width": 140,
        "height": 70,
        "fill": "#45b7d1",
        "opacity": 0.85,
        "position": { "x": 0.5, "y": 0.5, "originX": "right", "originY": "bottom" }
      },
      {
        "type": "text",
        "text": "LEFT-TOP",
        "fontSize": 16,
        "color": "#ffffff",
        "position": { "x": 0.5, "y": 0.5, "originX": "left", "originY": "top" }
      },
      {
        "type": "text",
        "text": "CENTER",
        "fontSize": 16,
        "color": "#000000",
        "position": { "x": 0.5, "y": 0.5, "originX": "center", "originY": "center" }
      },
      {
        "type": "text",
        "text": "RIGHT-BOTTOM",
        "fontSize": 16,
        "color": "#ffffff",
        "position": { "x": 0.5, "y": 0.5, "originX": "right", "originY": "bottom" }
      }
    ]
  }
}

Positioning Different Layer Types

Text Positioning

Text layers support both coordinate and string-based positioning:

Text Positioning Example

{
  "type": "image",
  "config": {
    "width": 600,
    "height": 200,
    "backgroundColor": "#ffffff",
    "layers": [
      {
        "type": "text",
        "text": "Pixel Position",
        "x": 50, "y": 100,
        "fontSize": 20, "color": "#007acc"
      },
      {
        "type": "text",
        "text": "String Position",
        "position": "center",
        "align": "center",
        "fontSize": 20, "color": "#28a745"
      },
      {
        "type": "text",
        "text": "Object Position",
        "position": { "x": 0.8, "y": 0.8, "originX": "right", "originY": "bottom" },
        "fontSize": 20, "color": "#dc3545"
      }
    ]
  }
}

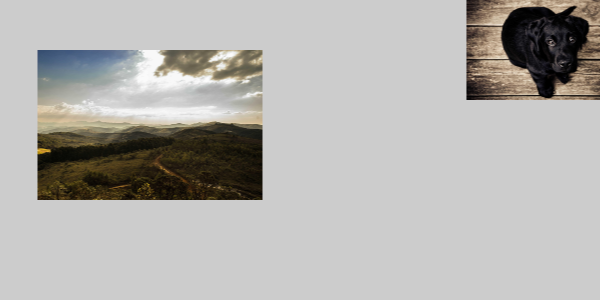

Image Positioning

Images can be positioned and aligned within their containers:

Image Positioning Example

{
  "type": "image",
  "config": {
    "width": 600,
    "height": 300,
    "backgroundColor": "#CCCCCC",
    "layers": [
      {
        "type": "image",
        "path": "/image/2025-09-10/cmejsz/landscape.jpg",
        "x": 50, "y": 50,
        "width": 200, "height": 150,
        "fit": "cover"
      },
      {
        "type": "image",
        "path": "/image/2000-09-10/cmejsz/dog.jpg",
        "position": "top-right",
        "width": 100, "height": 100,
        "fit": "cover"
      }
    ]
  }
}

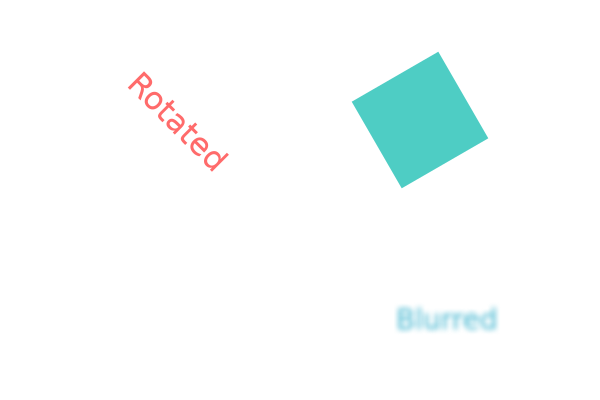

Positioning with Transformations

Combine positioning with rotation and other effects:

Transformed Positioning Example

{
  "type": "image",
  "config": {
    "width": 600,
    "height": 400,
    "backgroundColor": "#ffffff",
    "layers": [
      {
        "type": "text",
        "text": "Rotated",
        "position": { "x": 0.3, "y": 0.3, "originX": "center", "originY": "center" },
        "fontSize": 32, "color": "#ff6b6b",
        "rotation": 45
      },
      {
        "type": "rectangle",
        "position": { "x": 0.7, "y": 0.3, "originX": "center", "originY": "center" },
        "width": 100, "height": 100,
        "fill": "#4ecdc4",
        "rotation": -30
      },
      {
        "type": "text",
        "text": "Blurred",
        "position": { "x": 0.5, "y": 0.7, "originX": "center", "originY": "center" },
        "fontSize": 28, "color": "#45b7d1",
        "blur": 3
      }
    ]
  }
}

Common Mistakes

Avoid These Patterns

❌ Hardcoded positions for different canvas sizes

// Don't do this for responsive designs
{ "x": 400, "y": 300 }

✅ Use relative positioning instead

{ "position": { "x": 0.5, "y": 0.5, "originX": "center", "originY": "center" } }

❌ Ignoring origin points

// This might not align as expected
{ "position": "center", "originX": "left" }

✅ Match origin to intention

{ "position": "center", "originX": "center", "originY": "center" }

Next Steps

Text Rendering - Learn about text-specific positioning and alignment
Visual Effects - Combine positioning with visual effects
Examples - See positioning in real-world layouts
